Pytorch with CUDA

Introduction

  • pytorch -> C++ -> CUDA
  • pybind: call C++ from python
  • CUDA GPU architechture

  • CUDA: grid -> block->thread
  • 为什么要有block这个中间层?
    • block 上限： $(2^{31}-1)*2^{16}*2^{16}$
    • Thread上限: 1024

Conda

pip

Pytorch

pip3 install torch torchvision torchaudio

Pip source list

https://www.cnblogs.com/chenjo/p/14071864.html

~/.pip/pip.conf

[global]
index-url = https://pypi.tuna.tsinghua.edu.cn/simple
[install]
trusted-host=mirrors.aliyun.com

Set source list for pip install

pip install pymysql -i https://pypi.tuna.tsinghua.edu.cn/simple/

// 国内源
pip install 包名-i http://pypi.douban.com/simple/ --trusted-host pypi.douban.com

Environment Building

  • conda create -n cppcuda python=3.8

  • conda activate cppcuda

  • Install pytorch

    • python -m pip install pip -U
pip3 install torch torchvision torchaudio

  • pytorch path

    • how to check path

      import torch
print(torch.__file__)

    • path example:

      "/usr/include/python3.8",
"/home/.local/lib/python3.8/site-packages/torch/include/",
"/home/.local/lib/python3.8/site-packages/torch/include/torch/csrc/api/include"

  • Python setup Example for CppExtension

from setuptools import setup
from torch.utils.cpp_extension import BuildExtension, CppExtension

setup(
    name='cppcuda_tutorial',
    version='1.0',
    author='qingbao',
    author_email='<EMAIL>',
    description='cppcuda example',
    long_description='A tutorial for using C++ and CUDA in PyTorch',
    long_description_content_type='text/markdown',
    ext_modules=[
        CppExtension(
           name='cppcuda_tutorial',
           sources=['interplation.cpp']),
    ],
    cmdclass={
        'build_ext': BuildExtension},
)

General use case

  • non parallel computation, e.g. volume rendering
  • lots of sequential computation

Example: linear interpolation

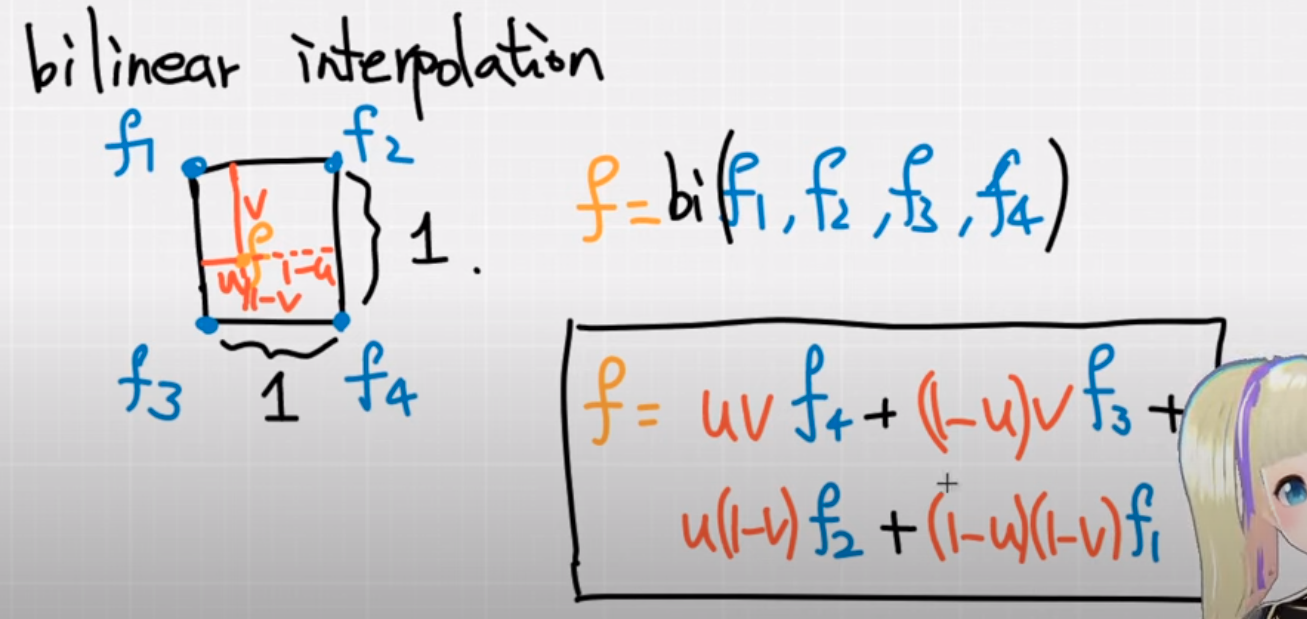

Bilinear interpolation

bilinear_interplation

Trilinear interpolation

  • Input

    • feats: (N, 8, F)
      • N: 多少个volume
      • 8： 8个顶点
      • F: 每个顶点的特征

  • Output

    • points: (N, 3) 差值后的点

  • 平行运算：

    • N个点
    • F平行

  • 如何计算block大小

thread_block

const int N = feats.size(0);
const int F = feats.size(2);

// torch::zeros({N, F}, torch::dtype(torch::kInt32).device(feats.device()));
torch::Tensor feat_interp = torch::zeros({N, F}, feats.options());

const dim3 threads(16, 16); // max threads:256, two dimension, each use 16 threads
const blocks((N + threads.x -1)/threads.x, (F + threads.y -1)/threads.y);

Issues

  • unsupported clang version
/usr/local/cuda/bin/../targets/x86_64-linux/include/crt/host_config.h:151:2:
[cmake]   error: -- unsupported clang version! clang version must be less than 16 and
[cmake]   greater than 3.2 .  The nvcc flag '-allow-unsupported-compiler' can be used
[cmake]   to override this version check; however, using an unsupported host compiler
[cmake]   may cause compilation failure or incorrect run time execution.  Use at your
[cmake]   own risk.
[cmake]
[cmake]     151 | #error -- unsupported clang version! clang version must be less than 16 and greater than 3.2 . The nvcc flag '-allow-unsupported-compiler' can be used to override this version check; however, using an unsupported host compiler may cause compilation failure or incorrect run time execution. Use at your own risk.
[cmake]         |  ^
[cmake]
[cmake]   1 error generated.

Solution:

Use clang less than 16.

set(CMAKE_C_COMPILER   /usr/bin/clang-13)
set(CMAKE_CXX_COMPILER /usr/bin/clang++-13)
  • Failed to initialize NumPy
.local/lib/python3.8/site-packages/torch/nn/modules/transformer.py:20: UserWarning: Failed to initialize NumPy: numpy.core.multiarray failed to import (Triggered internally at ../torch/csrc/utils/tensor_numpy.cpp:84.)
  device: torch.device = torch.device(torch._C._get_default_device()),  # torch.device('cpu'),

Solution:

python -m pip install pip -U
  • setuptools
_check_cuda_version(compiler_name, compiler_version)
File "/home/qingbao/.local/lib/python3.8/site-packages/torch/utils/cpp_extension.py", line 411, in _check_cuda_version
raise ValueError("setuptools>=49.4.0 is required")
ValueError: setuptools>=49.4.0 is required

QT PySide6

  • PySide6
pip install PySide6 --trusted-host mirrors.aliyun.com

  • Vscode

    • PySide plugin

    • PYQT Integration

  • Path

    • whereis pyside6-lupdate

    • whereis pyside6-designer

    • whereis pyside6-qmlls

    • whereis pyside6-qml

    • whereis pyside6-qmlformat

    • pyside6-uic

    • pyside6-rcc

  • Run

pyside6-designer

References
